Powerful and Comfortable

Experience Unprecedented Smoothness and Power
The world's leading laboratory micromotor just got better. The Ultimate range has evolved to run even smoother and be more powerful. With 180° vector control system, it assures you to work more efficiently and stress-free. The handpiece shape has been designed extremely carefully with ergonomy and functionality always being at the forefront of the designer's mind. The result is a handpiece which considerably reduces hand fatigue and makes it easier to work on even the most delicate pieces of work for extended periods of time. Experience the next-generation performance the Ultimate XL has to offer.

Technology & Function

  • 180° Vector Motor Control
    180° Vector Motor Control

    - Ripple-free smooth rotation with 180˚ vector control system
    - Powerful and stable torque across the entire speed range

  • Low Noise, Low Vibration
    Low Noise, Low Vibration

    - Minimal vibration, and noise from hermetically shielded micromotor unit
    - Approximately 30% increased chuck strength enables you to work on a wider variety of materials

  • Compact and Lightweight
    Compact and Lightweight

    Ligthweight compact body reduces hand fatigue and improves balance

  • High Fit
    High Fit

    Easy-to-hold handpiece design ensures precision

  • Digital Display
    Digital Display

    Digital Speed Display

  • Turbine Adapter
    Turbine Adapter

    TA50 air turbine adaptor allows you to quickly switch power source between air turbine handpiece and electric micromotor. Both handpieces are equally controllable with a single foot control or knee control.

ULTIMATE XL

ULTIMATE XL

Torque

  • Model:UMXL-GT (230 V)
  • Order Code:Y141469

Compact

  • Model:UMXL-GC (230 V)
  • Order Code:Y141470

Specifications

  • Power Supply
  • AC 230 V 50/60 Hz
  • Weight
  • 2.8 kg
  • Dimensions
  • W 167 x D 247 x H 77 mm
  • Max. torque
  • 8.7 Ncm (Torque) / 6.0 Ncm (Compact)

Contents

  • Control Unit
  • Micromotor Handpiece
  • Foot Control
  • Handpiece Stand

ULTIMATE XL-D

ULTIMATE XL-D

Torque

  • Model:UMXL-DT (230 V)
  • Order Code:Y141504

Compact

  • Model:UMXL-DC (230 V)
  • Order Code:Y141505

Specifications

  • Power Supply
  • AC 230 V 50/60 Hz
  • Weight
  • 3.3 kg
  • Dimensions
  • W 81 x D 270 x H 230 mm
  • Max. torque
  • 8.7 Ncm (Torque) / 6.0 Ncm (Compact)

Contents

  • Control Unit
  • Micromotor Handpiece
  • Foot Control
  • Handpiece Stand

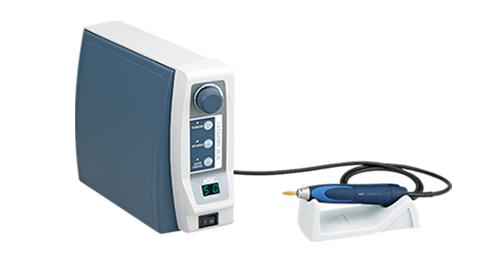

ULTIMATE XL-K

ULTIMATE XL-K

Torque

  • Model:UMXL-KT (230 V)
  • Order Code:Y141495

Compact

  • Model:UMXL-KC (230 V)
  • Order Code:Y141496

Specifications

  • Power Supply
  • AC 230V 50/60 Hz
  • Weight
  • 3.2 kg
  • Dimensions
  • W 90 x D 270 x H 230 mm
  • Max. torque
  • 8.7 Ncm (Torque) / 6.0 Ncm (Compact)

Contents

  • Control unit
  • Micromotor Handpiece
  • Handpiece Stand

ULTIMATE XL-F

ULTIMATE XL-F

Torque

  • Model:UMXL-FT (230 V)
  • Order Code:Y141513

Compact

  • Model:UMXL-FC (230 V)
  • Order Code:Y141514

Specifications

  • Power Supply
  • AC 230V 50/60 Hz
  • Weight
  • 3.8 kg
  • Dimensions
  • W 230 x D 292 x H 113 mm
  • Max. torque
  • 8.7 Ncm (Torque) / 6.0 Ncm (Compact)

Contents

  • Control unit
  • Micromotor Handpiece
  • Handpiece Stand
